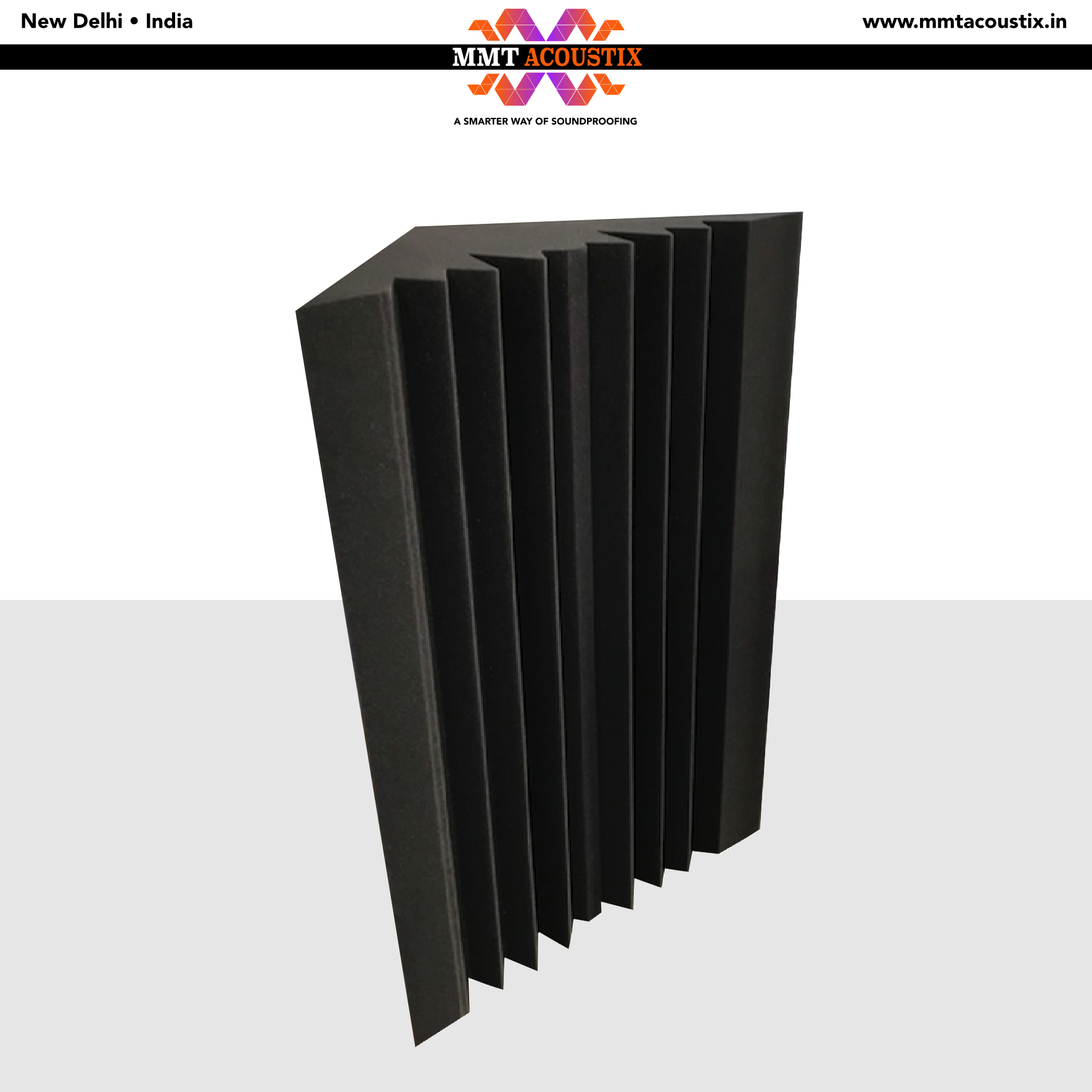

MMT Acoustix® Bass Trap Mega
Corner Bass Trap
A heavy-duty corner bass trap built to tackle excessive low-frequency build-up in critical acoustic spaces. High-density open-cell polyurethane foam, made by MMTPL at the Palwal plant, Haryana.
The problem it solves
What Bass Trap Mega fixes for you
Bass build-up in corners
Captures low-end frequencies where they collect, at room boundaries.
Boomy mixes
Mixing and mastering rooms get a clearer, more accurate low end.
Distorted playback
Home theatres get clear, distortion-free sound.
Muddy recordings
Recording, broadcast and podcast rooms stop colouring the low end.
Rumble in jamming spaces
Controls bass reflections when a band plays loud.
Applications
Where Bass Trap Mega goes
Recording studios
Recording studios
Tracking and live rooms.
Broadcast studios
Broadcast studios
Control rooms and on-air studios.
Home theatres
Home theatres
Tighter bass, clearer dialogue.
Also used in
- Podcast roomsCleaner low end on voice.
- Music jamming spacesBass control for live playing.
- Mixing and mastering roomsAccurate low-frequency monitoring.
- Rehearsal roomsBand and music practice rooms.
- Listening roomsHi-fi and critical listening spaces.
- Vocal boothsCorner bass control in small booths.
Specifications
Technical data
| Material | High-density open-cell polyurethane acoustic foam |
| Manufacturer | MMTPL, Palwal plant, Haryana, India |
| Size | 584 x 279 mm (23 x 11 in), 178 mm (7 in) depth |
| Profile | Corner profile, 178 mm (7 in) |
| Density | 50 kg/m³ |
| NRC | 1.0 |
| Acoustic test standard | ASTM C423, EN ISO 354 |
| Fire rating | Standard grade non-FR; UL 94 Class HS1 fire retardant grade on request |
| Size tolerance | ±5% |
| Colours | Charcoal Black, European Blue, MMT Orange, Stone White, Wine, Fire Red |
| Installation | Corner mounted, direct adhesive |
| Shelf life | Over 5 years with proper care |
| Country of origin | India |
Soundproofing: the fix for every sound problem
3-layer soundproofing
- 1
Layer 1: SoundBlanket® MLV
The dense barrier that isolates sound and stops it passing through walls, ceilings and floors.
- 2
Layer 2: BassBloc®
High-density sound absorber over the MLV that controls low-frequency noise.
- 3
Layer 3: Echsorbix®, SoundaXe® or WDWL®
The final acoustic finish: Echsorbix® PET felt, SoundaXe® wooden acoustics or WDWL® wood wool panels.
Layer 2 can also be covered with gypsum or cement board before adding the final acoustic layer.
Different thickness in each layer will give different STC and NRC levels.
Custom and OEM
Custom colours and project support
Custom colours can be developed for volume orders. BOQ, specification and drawing support for project quantities.
