MMT Acoustix® Acoustic Foam

Acoustic Foam Panels

High-density open-cell polyurethane acoustic foam that reduces echoes, reverb and background noise. Eleven profiles, made by MMTPL at the Palwal plant, Haryana, for studios, home theatres, podcast rooms and offices.

NRC 0.80 to 0.95by profile, ASTM C423

32 to 50 kg/m³density

25 / 50 / 100 mmcustom to 800 mm

11 profilesGalaxy to Hexagon

6 coloursstandard range

UL 94 HS1FR grade on request

Get price on WhatsApp Shop Online

The problem it solves

What MMT Acoustix® Acoustic Foam fixes for you

Echo in untreated rooms

Hard walls bounce sound back. The foam absorbs those reflections and cuts echo.

Reverb on recordings

Studios and podcast rooms get a drier, clearer recording.

Harsh mid and high frequencies

Built for mid-to-high frequency noise, where voices and instruments sit.

Muddy home theatre sound

Dialogue and effects come through clearer.

Background noise in offices

Offices and conference rooms get quieter and calls sound cleaner.

Choose a profile

Foam profiles

[Image 1:1]
Galaxy

Galaxy

Galaxy Acoustic Foam is a next-generation soundproofing solution designed with GEN-Z in mind.

[Image 1:1]
Curve

Curve

Curve Acoustic Foam brings a sophisticated touch to any interior with its unique, modern curve design.

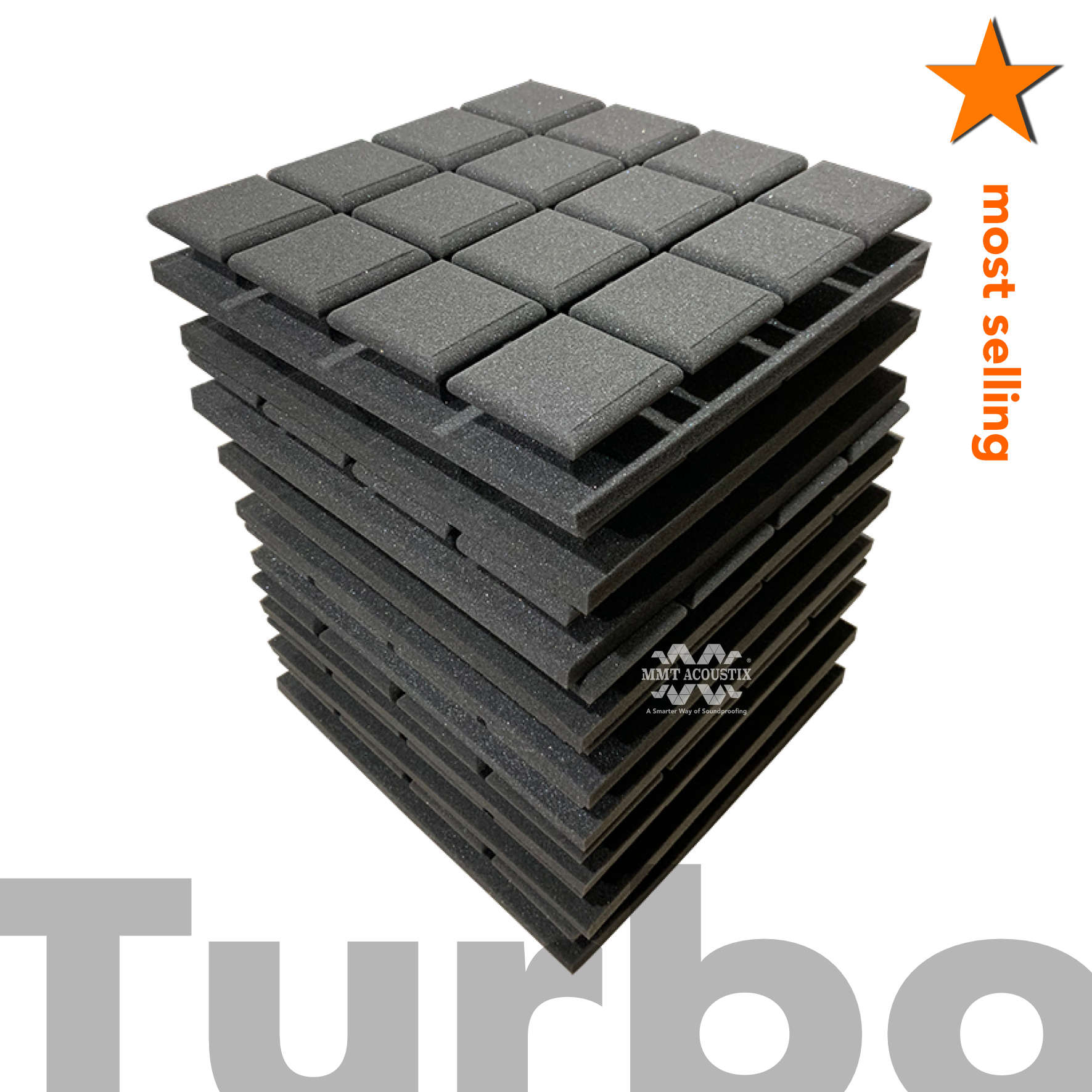

Turbo®

Designed for superior sound absorption with its unique canopy top structure, square tops and a spring neck design.

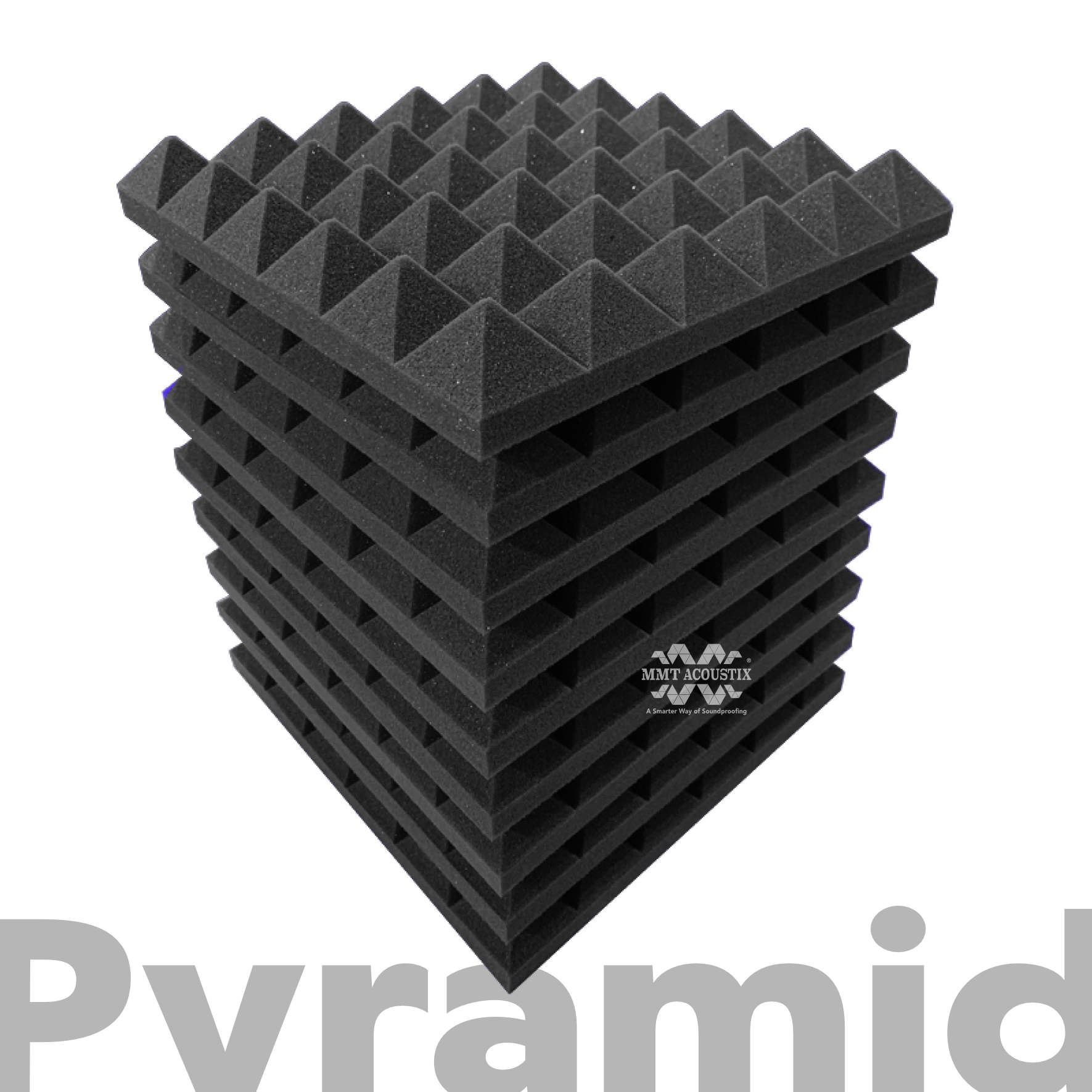

Pyramid

High-performance sound-absorbing panels that reduce echoes, reverb and background noise.

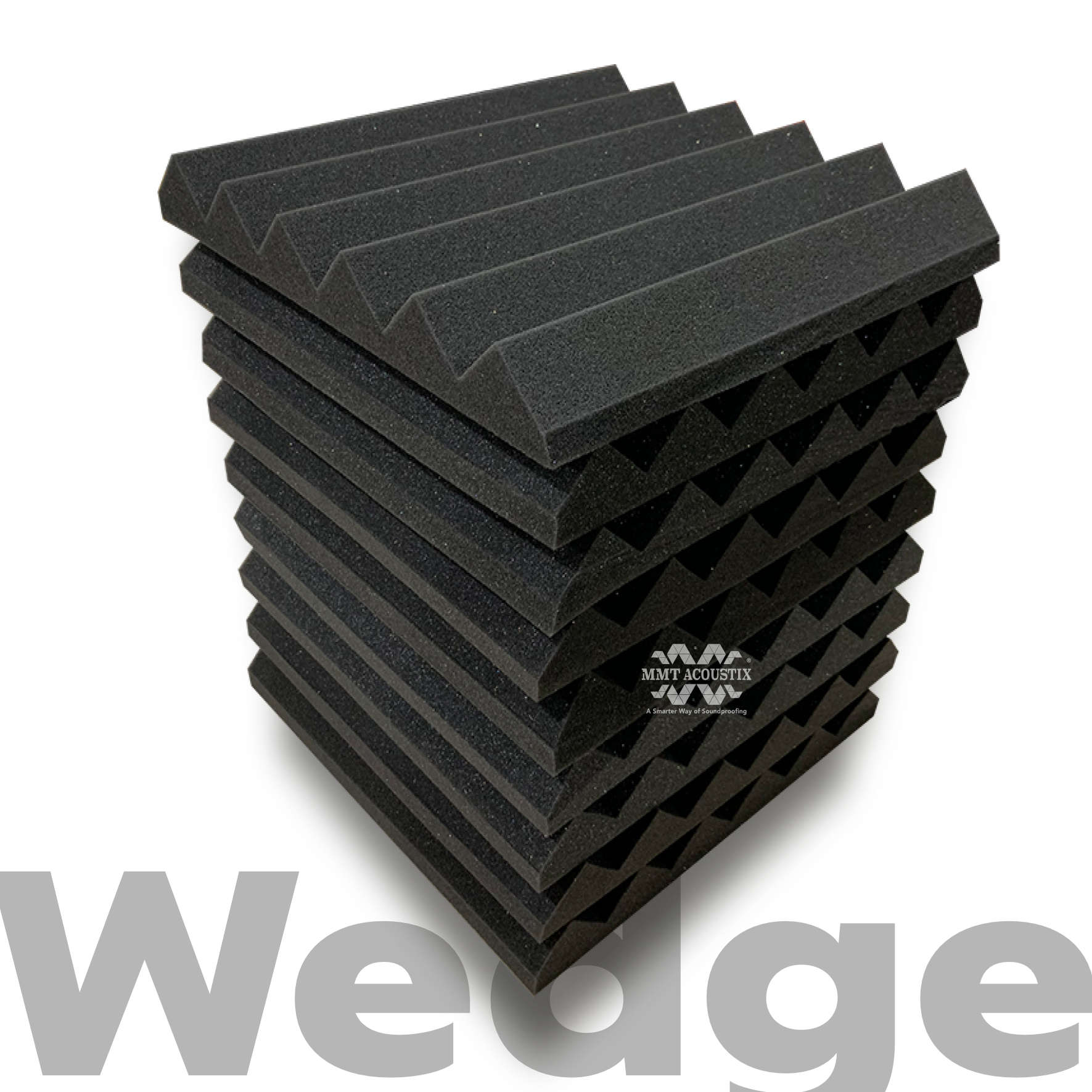

Wedge

Engineered to deliver exceptional sound absorption with its unique angular wedge design.

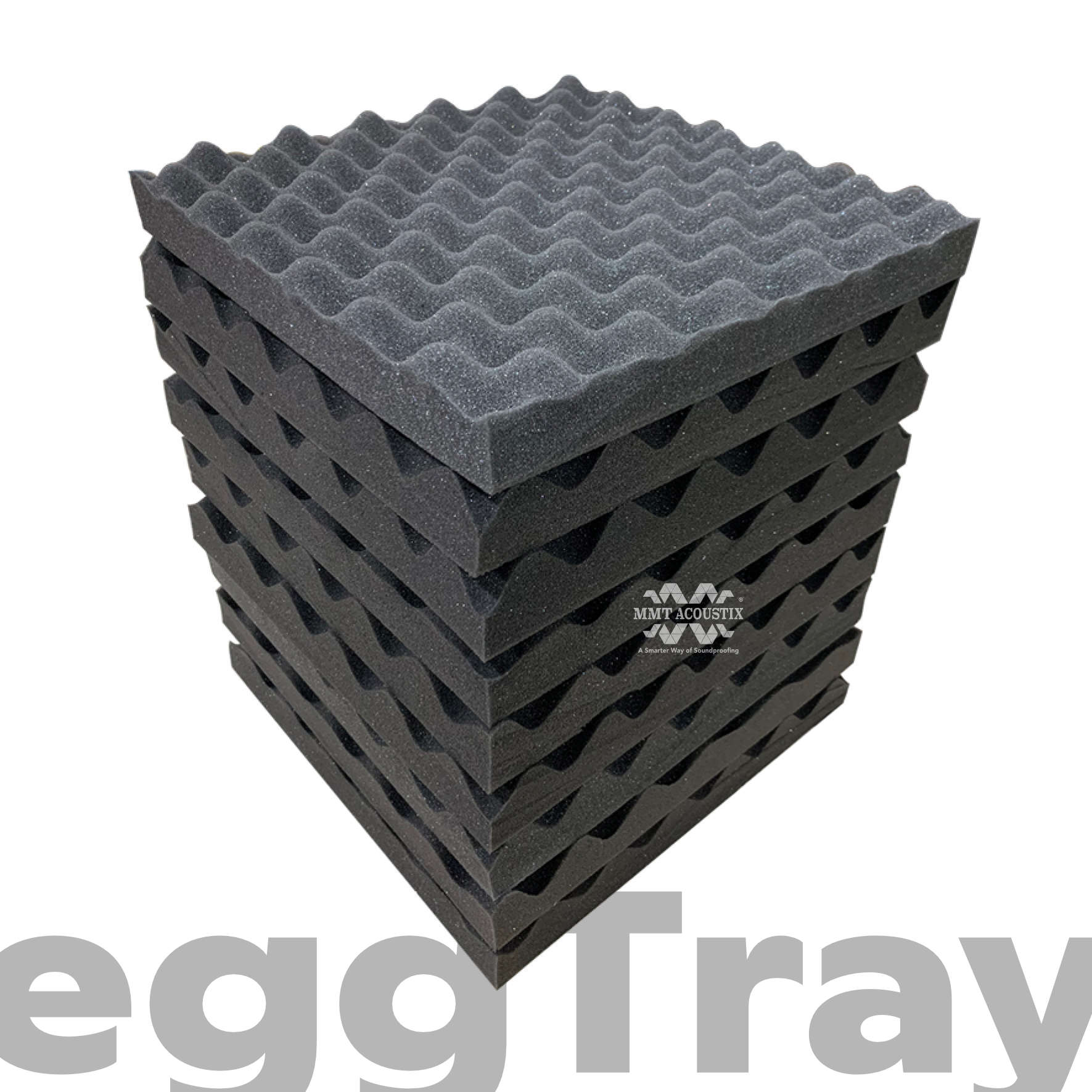

Egg Tray

Also known as Profile Cut Foam, with a distinctive egg-crate pattern engineered for sound absorption and noise reflection control.

[Image 1:1]
Alien

Alien

From the Design of the Future Series. The A-Line vertical design breaks the initial impact of sound waves, diffuses them and absorbs them.

T-Wedge

Combines sound diffusion, effective absorption and a sleek, modern design for professional-grade acoustic performance.

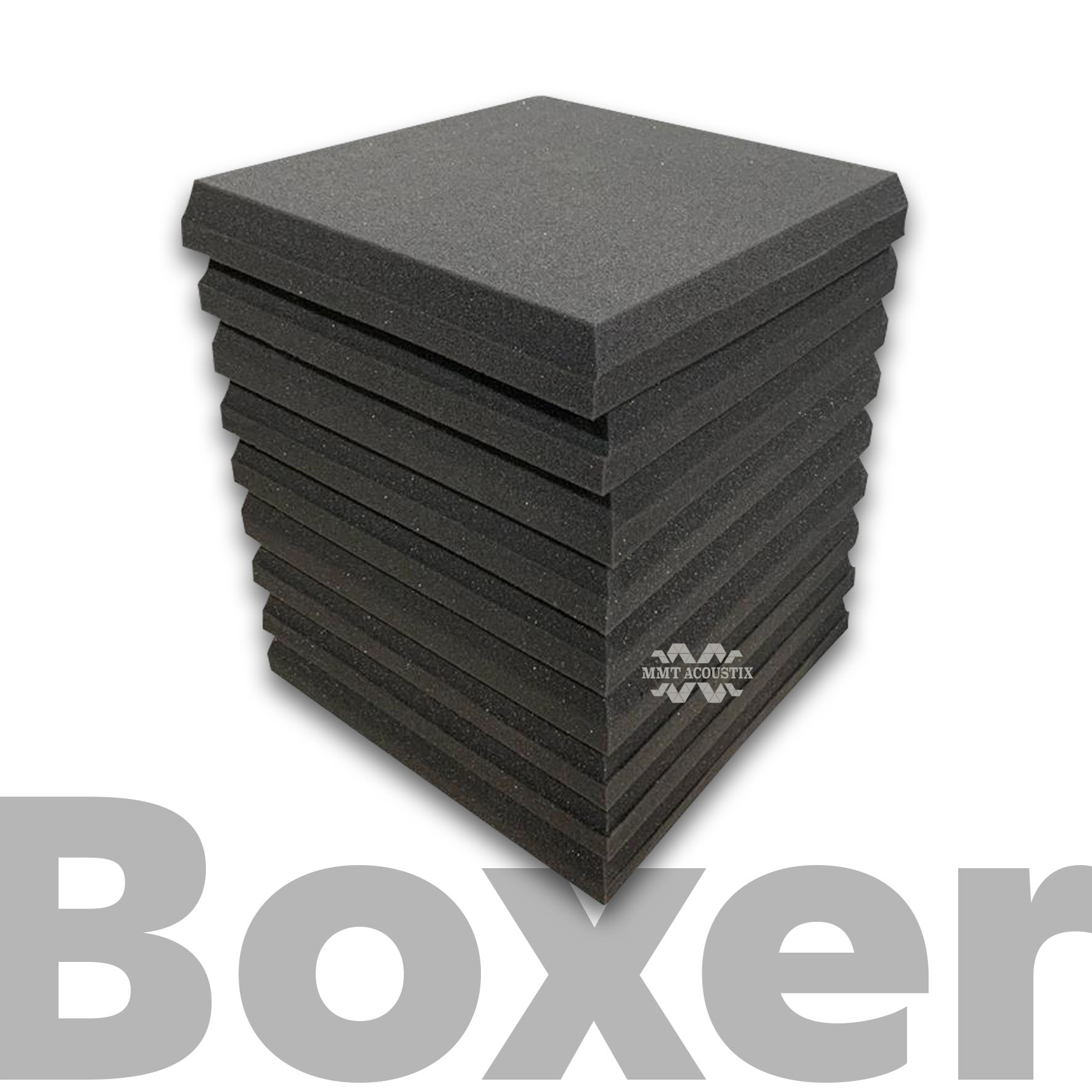

Boxer

A classy and simple sound-absorbing solution with a sleek, professional aesthetic.

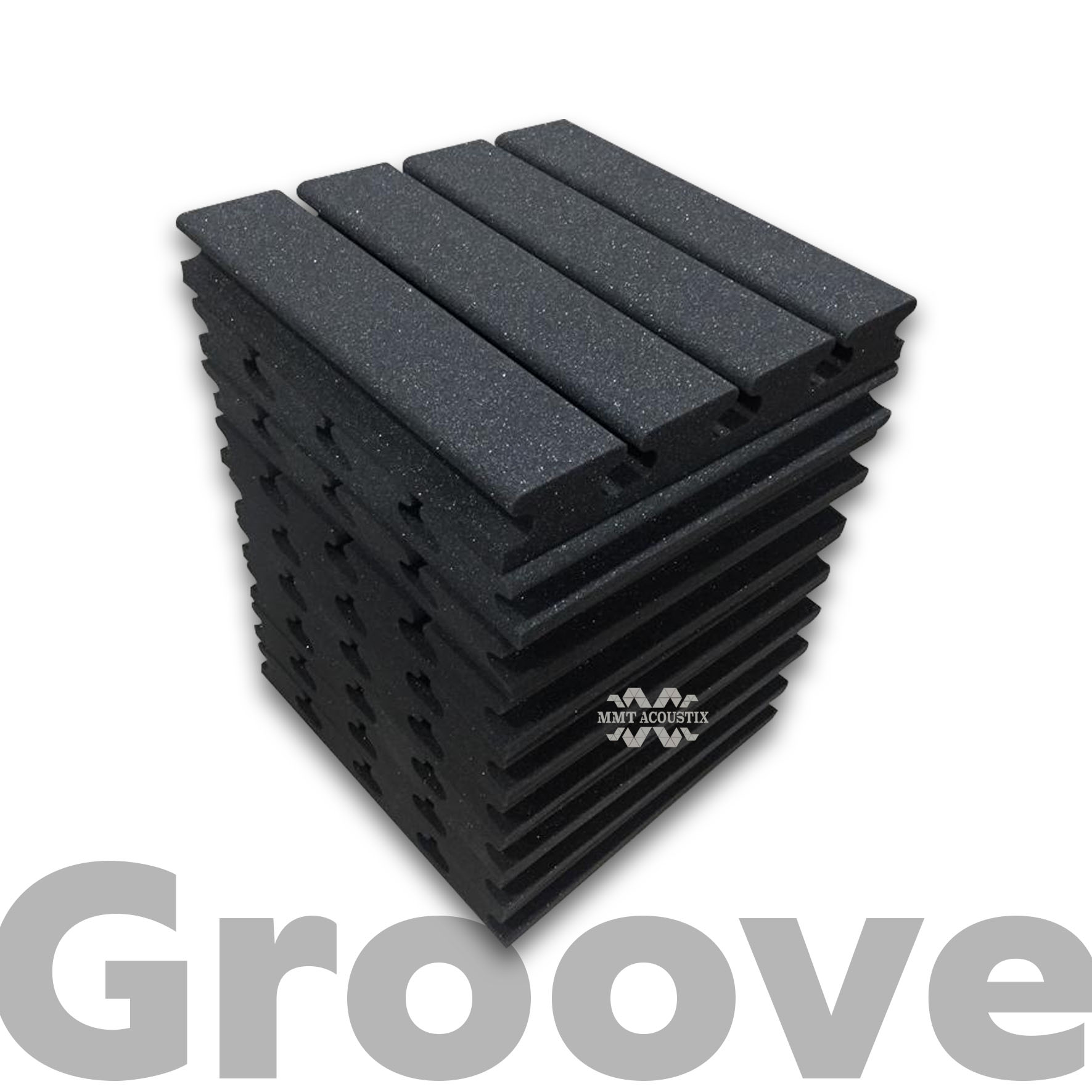

Groove

A rail track-inspired profile that maximises sound absorption through a turbo-like double-layered structure.

[Image 1:1]
Hexagon

Hexagon

A hybrid acoustic solution designed to function as both a sound absorber and a sound diffuser.

Applications

Where acoustic foam goes

[Image 1:1]
Recording studios

Recording studios

Tracking, mixing and vocal rooms.

[Image 1:1]
Home theatres

Home theatres

Clearer dialogue and effects.

[Image 1:1]
Podcast rooms

Podcast rooms

Drier, cleaner voice recordings.

Also used in

OfficesLower background noise at work.
Conference roomsClearer speech in meetings and calls.
Personal spacesAny room that needs better sound quality.
Vocal boothsVoice-over and dubbing booths.
Gaming and streaming roomsWall treatment behind the desk.
Rehearsal roomsBand and music practice spaces.

Compare profiles

NRC by profile

Profile	NRC	Tested at	Panel size
Galaxy	0.95	50 mm	1800 x 900 mm, 305 x 305 mm
Curve	0.95	50 mm	610 x 610 mm
Turbo®	0.90	50 mm	1800 x 900 mm, 305 x 305 mm
Pyramid	0.90	50 mm	1800 x 900 mm, 305 x 305 mm
Wedge	0.90	50 mm	1800 x 900 mm, 305 x 305 mm
Egg Tray	0.90	50 mm	1800 x 900 mm, 305 x 305 mm
Alien	0.90	50 mm	1800 x 900 mm, 305 x 305 mm
T-Wedge	0.85	50 mm	1800 x 900 mm, 305 x 305 mm
Boxer	0.90	50 mm	1800 x 900 mm, 305 x 305 mm
Groove	0.90	50 mm	1800 x 900 mm, 305 x 305 mm
Hexagon	0.80	43 mm	610 x 610 mm

NRC measured to ASTM C423. NRC is a single-figure average: thicker foam works lower down the spectrum.

Specifications

Technical data

Material	High-density open-cell polyurethane acoustic foam
Manufacturer	MMTPL, Palwal plant, Haryana, India
Panel sizes	1800 x 900 mm (6 x 3 ft) and 305 x 305 mm (12 x 12 in); Curve and Hexagon 610 x 610 mm (2 x 2 ft)
Thickness	25, 50, 100 mm, customisable to 800 mm (Boxer 40 mm standard, Hexagon 43 mm)
Density	32 to 50 kg/m³ (Hexagon 50 kg/m³)
NRC	0.80 to 0.95 by profile; Pyramid 0.90 at 50 mm
Acoustic test standard	ASTM C423
Frequency range	Mid to high frequency
Fire rating	Standard grade non-FR; UL 94 Class HS1 fire retardant grade on request
Size tolerance	±5%
Colours	Charcoal Black, European Blue, MMT Orange, Stone White, Wine, Fire Red
Installation	Direct adhesive (Turbo® SR Adhesive or spray adhesive) on paint, wood, plaster, metal or glass. No frame or sub-structure needed.
Country of origin	India

Soundproofing: the fix for every sound problem

3-layer soundproofing

1
Layer 1: SoundBlanket® MLV
The dense barrier that isolates sound and stops it passing through walls, ceilings and floors.
2
Layer 2: BassBloc®
High-density sound absorber over the MLV that controls low-frequency noise.
3
Layer 3: Echsorbix®, SoundaXe® or WDWL®
The final acoustic finish: Echsorbix® PET felt, SoundaXe® wooden acoustics or WDWL® wood wool panels.

Layer 2 can also be covered with gypsum or cement board before adding the final acoustic layer.

Different thickness in each layer will give different STC and NRC levels.

3-layer soundproofing: SoundBlanket MLV, BassBloc and acoustic finish panel build-up

Custom and OEM

Custom thickness and colours

Thickness can be made to order up to 800 mm, and custom colours can be developed for volume orders.

Talk to the OEM desk

FAQs

Questions about acoustic foam

Who manufactures Pyramid Acoustic Foam in India?

MMTPL (Mahabir Multi Tech Private Limited) manufactures it at its Palwal plant in Haryana, India, and supplies studios, offices, cinemas and industrial sites in India and 25+ export markets.

What is the NRC of Pyramid Acoustic Foam?

Pyramid Acoustic Foam has an NRC of 0.90 at 50 mm, measured to ASTM C423. NRC is a single-figure average, so match the thickness to the frequency you need to control: thicker foam works lower down the spectrum.

What density is the foam?

The foam is high-density open-cell polyurethane at 32 to 50 kg/m³, which is what gives it absorption at mid and high frequencies rather than just at the top end.

Is the foam fire rated?

Standard grade is supplied non-FR. A UL 94 Class HS1 fire retardant grade is available on request, which is what most institutional, government and tender projects specify.

How is it installed?

It bonds directly to a clean wall with Turbo® SR Adhesive or spray adhesive, on paint, wood, plaster, metal or glass. No frame or sub-structure is needed.

What colours are available?

Six standard colours: Charcoal Black, European Blue, MMT Orange, Stone White, Wine and Fire Red. Custom colours can be developed for volume orders.
